At the beginning,the inertial measurement unit is an electronic device that measures and reports on a craft's velocity, orientation, and gravitational forces, using a combination of accelerometers,gyroscopes, and magnetometers. Now IMUs are commonly used in the Human-computer interaction(HCI), navigational purposes and balancing technology used in the Segway Personal Transporter as we all known.

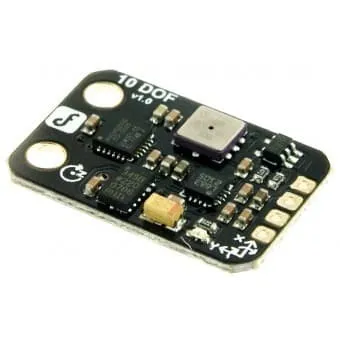

The 10 DOF(degrees of the freedom) sensor is a compact and low cost IMU from DFRobot. It integrates the ADXL345 accelerometer, the HMC5883L magnetometer,the ITG-3205 gyro and the BMP085 barometric pressure sensor. It's suitable for most of the controlling system because of the small dimension. The mounting holes make it possible to provide the highly accurate and stable sensor data.It embeds a low noise LDO regulator for supplying a wide range power input.Works with 3~8 volts power input.Certainly,the 10 DOF sensor is directly compatible with your Arduino boards.

Applications

Aircraft

Balancing robots

Indoor inertial navigation

Altimeter

Human–computer Interaction (HCI)

Specification

Wide power input range from 3 to 8 volts

Low noise LDO regulator

Low cost IMU

Interface: I2C

M3x2 holes for easily mounted on your mobile platforms,robots,HCI or UAVs

LED power indication

Integrate 10 dof sensors

Adxl345 accelerometer

ITG3200 gyro

HMC5883L Compass

BMP085 pressure sensor

Compact size design and easy-to-use

Compatible with Arduino controllers

Electricity gold PCB

Size: 26x18mm

Shipping List

10 Dof Sensor 1unit

4P Pin Headers 1unit

10 DOF Mems IMU Sensor

10 DOF Mems IMU Sensor
