#45

DISPLAY BLUE 6 DIGIT YA KAK, JUDUL 8DIGIT BARANG SUDAH PERNAH TERJUAL TIDAK BISA DIRUBAH.

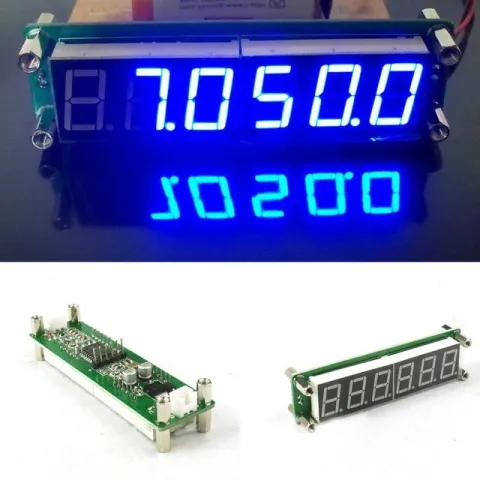

0.1MHz-2.4GHz Frequency Counter Meter Frekuensi 8 Digits Seven Segment Blue

Features:

Using temperature-compensated voltage controlled crystal oscillator (2.5 ppm VC-TCXO).

Unique gate control and precise time algorithm (non-timed interrupt).

Gate (display refresh) time 0.01 seconds / 0.1 seconds / 1.0 seconds, real-time display frequency value.

Single-ended input design, three-channel frequency measurement (low channel / high channel / Auto Channel).

Dual frequency design, value and IF / down mode can be preset separately.

Using eight 0.56 inches high brightness digital display, eight adjustable brightness.

Circuit is simple and reasonable structure, two-button control, simple operation.

The settings are automatically saved, boot directly call.

Descriptions:

1 Gate time

0.01s

0.10s

1.0s

2 Measurement channels (Both high and low channels are high impedance)

low channel

Measuring range: 0.1 MHz ~ 60 MHz

Accuracy: 100Hz (0.01s gate time)

10Hz (0.1s gate time)

1Hz (1.0s gate time)

Low channel sensitivity:

0.1 MHz ~ 10 MHz: better than 60mVPP

10 MHz ~ 60 MHz: better than 60mVPP

60 MHz ~ 75 MHz: No tested

high channel (64 divider)

Measuring range: 20 MHz ~ 2.4 GHz

Accuracy: 6400Hz (0.01s gate time)

640Hz (0.1 1s gate time)

64Hz (1.0 1s gate time)

High channel sensitivity:

20 MHz ~ 30 MHz: better than 100mVPP

30 MHz ~ 60 MHz: better than 50mVPP

60 MHz ~ 2.4GHz: not tested

Auto Channel

Automatically selected according to the input signal frequency high or

low channel channel, identifying the frequency of 60 MHz. Such as

when the input signal amplitude is greater than 60 MHz shortage

can no..

HARGA TERTERA UNTUK 6 DIGIT BUKAN 8DIGIT MAAF KARENA TIDAK BISA RUBAH JUDUL BARANG YG SUDAH TERJUAL

0.1MHz-2.4GHz Frequency Counter Meter Frekuensi 8 Digits Seven Segment

Rp 335.160
