DISPLAY BLUE

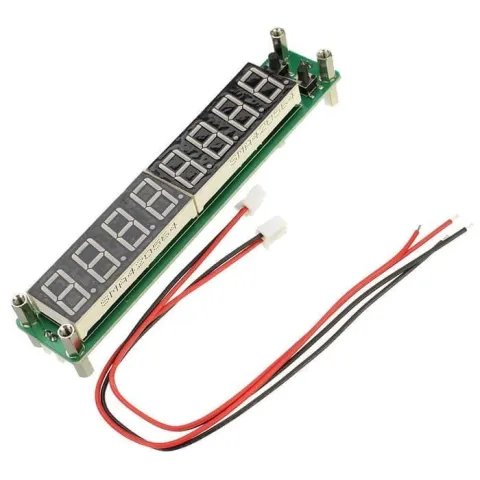

0.1MHz-2.4GHz Frequency Counter Meter Frekuensi 8 Digits Seven

Measuring range: 0.1 MHz ~ 60 MHz

Accuracy: 100Hz (0.01s gate time)

10Hz (0.1s gate time)

1Hz (1.0s gate time)

Low channel sensitivity:

0.1 MHz ~ 10 MHz: better than 60mVPP

10 MHz ~ 60 MHz: better than 60mVPP

60 MHz ~ 75 MHz: No tested

high channel (64 divider)

Measuring range: 20 MHz ~ 2.4 GHz

Accuracy: 6400Hz (0.01s gate time)

640Hz (0.1 1s gate time)

64Hz (1.0 1s gate time)

High channel sensitivity:

20 MHz ~ 30 MHz: better than 100mVPP

30 MHz ~ 60 MHz: better than 50mVPP

60 MHz ~ 2.4GHz: not tested

Auto Channel

Automatically selected according to the input signal frequency high or low channel channel, identifying the frequency of 60 MHz. Such as when the input signal amplitude is greater than 60 MHz shortage can not automatically select high channel, the channel should manually select high frequency measurement.

3. IF settings

Independent double-IF design, adjust the minimum frequency step of 100 Hz, frequency range 0 ~ 99.9999 MHz, can be set to increase or decrease the IF frequency mode.

4. Frequency reference

Using 5032 package 13.000MHz Warming voltage controlled crystal oscillator (VC-TCXO), frequency stability of ± 2.5 ppm.

5. Operating voltage

DC Input: DC 9V ~ 15V (with reverse polarity protection)

0.1MHz-2.4GHz Frequency Counter Meter Frekuensi 6 Digits Seven Segment
