B550MHP

Chipset AMD B550

CPU SUPPORT Support AMD Ryzen 5000/5000G/4000G/3000 series Processors

Support for future AMD Ryzen processors with BIOS update

MEMORY 4th Gen AMD Ryzen Processors (Vermeer CPUs):

Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133

4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):

Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133

3rd Gen AMD Ryzen Processors (Matisse CPUs):

Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133

3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):

Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

INTEGRATED VIDEO By CPU model

Supports DX12

Supports HDCP

STORAGE

Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports

1 x M.2 (M Key) Socket (M2M_CPU):

Supports M.2 Type 2260/2280 SSD module

AMD Ryzen 5000/3000 Processors

Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD, SATA III (6.0Gb/s) SSD.

AMD Ryzen 5000G/4000G Processors

Supports PCIe 3.0 x4 (32Gb/s) - NVMe SSD, SATA III (6.0Gb/s) SSD.

AMD B550 Chipset

4 x SATA III Connector (6Gb/s):

Supports AHCI & RAID 0, 1, 10

* M.2 (M2M_CPU) Socket: The bandwidth is depended on CPU.

* Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse & 4th Gen Vermeer.

* Specifications vary by CPU types

LAN Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

EXPANSION SLOT A

MD Ryzen 5000/3000 Processors

1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode)

AMD Ryzen 5000G/4000G Processors

1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)

AMD B550 Chipset

2 x PCIe 3.0 x1 Slot

* According to different CPUs will have different speeds.

INTERNAL I/O

4 x SATA III 6.0Gb/s Connectors

1 x USB 3.2 (Gen1) Header

(each header supports 2 USB 3.2 (Gen1) ports)

2 x USB 2.0 Header

(each header supports 2 USB 2.0 ports)

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x COM Serial Header

1 x Internal Stereo Speaker Header

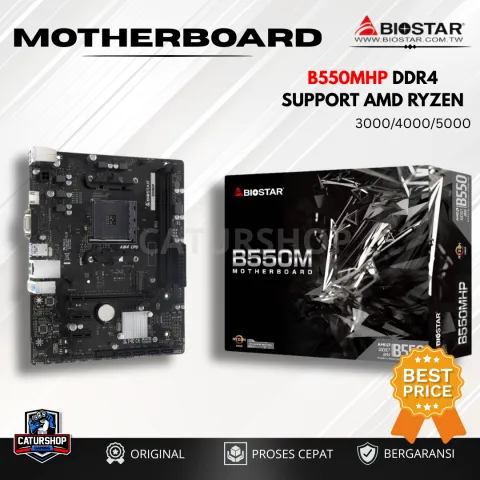

Motherboard BIOSTAR B550MHP/ B550 MHP/ B550M DDR4 Support AMD RYZEN 3000 / 4000 / 5000
