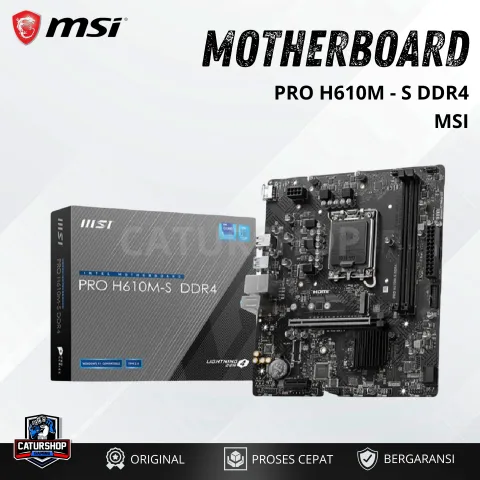

MSI PRO H610M-S DDR4 Motherboad Intel H610 LGA1700 DDR4 mATX

Silahkan tanyakan stok dulu sebelum beli.

Spesifikasi :

Chipset

INTEL H610

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

Memory

2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI™

Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage

1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2x SATA 6G

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LAN

Realtek® RTL8111H Gigabit LAN

Internal IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

HDMI™

USB 3.2 Gen 1 5Gbps (Type-A)

USB 2.0

LAN port

Audio Connectors

USB 2.0

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

MSI PRO H610M-S DDR4 Motherboad Intel H610 LGA1700 DDR4 / Msi Pro H610M-S

MSI PRO H610M-S DDR4 Motherboad Intel H610 LGA1700 DDR4 / Msi Pro H610M-S

Rp 1.150.000
