A520MHP

Chipset AMD A520

CPU SUPPORT Support AMD Ryzen 5000/5000G/4000G/3000/3000G series Processors

Support for future AMD Ryzen processors with BIOS update

* Please refer to www.biostar.com.tw for CPU support list.

MEMORY

4th Gen AMD Ryzen Processors (Vermeer CPUs):

Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133

4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133

3rd Gen AMD Ryzen Processors (Matisse CPUs):

Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133

3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):

Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

* Please refer to www.biostar.com.tw for Memory support list.

STORAGE

Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports

AMD Ryzen 5000/5000G/4000G/3000/3000G Processors

1 x M.2 (M Key) Socket:

Supports M.2 Type 2260/ 2280 SSD module

Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD

Supports SATA III (6.0Gb/s) SSD

AMD A520 Chipset

4 x SATA III Connector (6Gb/s):

Supports AHCI & RAID 0, 1, 10

* Specifications vary by CPU types

LAN Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

EXPANSION SLOT

AMD Ryzen 5000/3000 Processors

1 x PCIe 3.0 x16 Slot (x16 or x4/x4/x4/x4 mode)

AMD Ryzen 5000G/4000G/3000G Processors

1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)

AMD A520 Chipset

2 x PCIe 3.0 x1 Slot

* According to different CPUs will have different speeds.

* Specifications vary by CPU types

REAR I/O

1 x PS/2 Keyboard/ Mouse

1 x VGA Port

1 x HDMI Port

1 x LAN port

2 x USB 3.2 (Gen1) Port

4 x USB 2.0 Port

3 x Audio Jack

INTERNAL

I/O 4 x SATA III 6.0Gb/s Connector

1 x USB 3.2 (Gen1) Header

(each header supports 2 USB 3.2 (Gen1) ports)

2 x USB 2.0 Header

(each header supports 2 USB 2.0 ports)

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x COM Serial Header

1 x Internal Stereo Speaker Header

DIMENSION Micro ATX Form Factor Dimension: 19.0 cm x 23.5 cm ( W x L )

OS SUPPORT Supports Windows 10(64bit)/ 11(64bit)

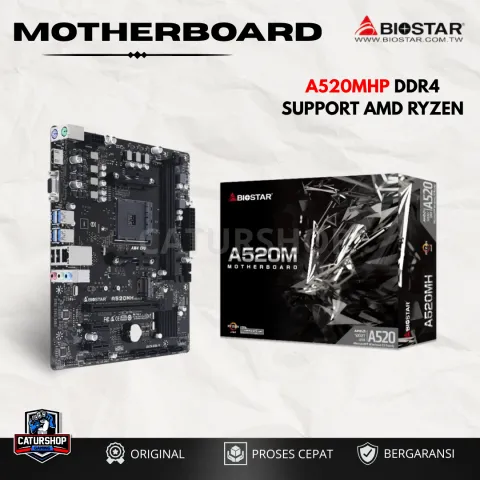

MOTHERBOARD BIOSTAR A520MHP DDR4 SUPPORT AMD RYZEN 3000/4000/5000

MOTHERBOARD BIOSTAR A520MHP DDR4 SUPPORT AMD RYZEN 3000/4000/5000

Rp 850.000
