Power over Ethernet Adapters

PoE Adapters power Ubiquiti products that support passive PoE.

U-POE-AF

POE Injector

802.3af

U-POE-af

Dimensions 86 x 46 x 33 mm

(3.39 x 1.81 x 1.30")

Weight 100 g

(3.53 oz)

Output Voltage 48VDC @ 0.32A

LAN Activity Indicator No

Gigabit LAN Port Yes

Remote Reset Capability Yes

Reset Button No

Rated Voltage 100-240VAC @ 50/60Hz

Input Current 500mA @ 90VAC

Inrush Current <100A Peak @ 25°C

Efficiency 84.25+%

Output Ripple 200mV p-p

Switching Frequency 65 kHz

Line Regulation ≤ 3%

Load Regulation ≤ 5%

2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)

4-Pair Powering –

Operating Temperature 0 to 40° C

(32 to 104° F)

Storage Temperature -30 to 70°C

(-22 to 158° F)

Operating Humidity 5 to 90% Noncondensing

AC Connector IEC-320 C6

Data IN / POE RJ45 Shielded Socket

Surge Protection Difference and Common Mode

Clamping Protection 11V Data, 60V Power

Max. Surge Discharge 1500A (8/20 μs) Power

Peak Pulse Current 36A (10/1000 μs) Data

Shunt Capacitance <5 pF data

Response Time <1 ns

Certifications CE, FCC, IC, UL

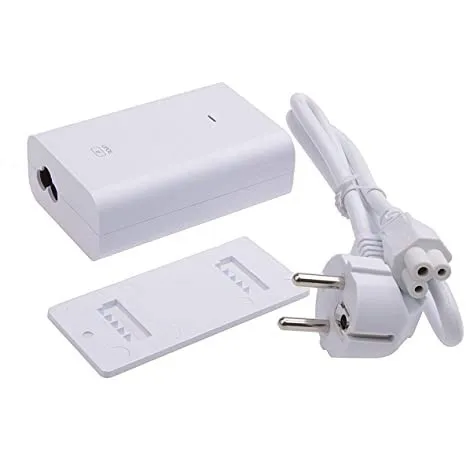

Ubiquiti U-POE-af 48V-0.32A Gigabit POE Injector 802.3af

Rp 250.000
