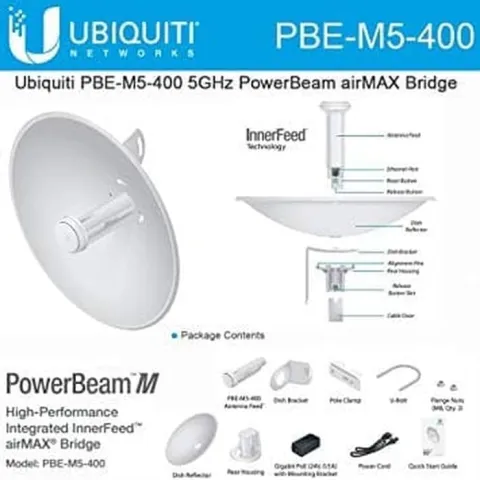

Overview Of Ubiquiti PowerBeam M5 400mm (PBE-M5-400)

Radio Wireless Point to Point jarak Up to 25KM

Spesifikasi :

PBE-M5-400 System and Regulatory/Compliance

- Processor Specs : Atheros MIPS 74Kc, 560 MHz

- Memory : 64 MB DDR2, 8 MB Flash

- Networking Interface : (1) 10/100/1000 Ethernet Port

- Wireless Approvals : FCC, IC, CE

- RoHS Compliance : Yes

PBE-M5-400 Physical/Electrical/Environmental

- Dimensions : 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")

- Weight : 1.753 kg (3.87 lb)

- Power Supply : 24V, 0.5A Gigabit PoE

- Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)

- Max. Power Consumption : 8W

- Gain : 25 dBi

- Operating Frequency

Worldwide : 5170 - 5875 MHz

USA : 5725 - 5850 MHz

- Wind Loading : 342.5 N @ 200 km/h (77 lbf @ 125 mph)

- Wind Survivability : 200 km/h (125 mph)

- LEDs : (1) Power, (1) LAN, (4) WLAN

- Signal Strength LEDs : Software-Adjustable to Correspond to Custom RSSI Levels

- Channel Sizes : 5/8/10/20/30/40 MHz

- Polarization : Dual Linear

- Enclosure : Outdoor UV Stabilized Plastic

- Mounting : Pole-Mount Kit Included

- ESD/EMP Protection : Air: 24 kV, Contact: 24 kV

- Operating Temperature : -40 to 70 C (-40 to 158 F)

- Operating Humidity : 5 to 95% Noncondensing

- Salt Fog Test : IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

- Vibration Test : IEC 68-2-6

- Temperature Shock Test : IEC 68-2-14

- UV Test : IEC 68-2-5 at 40 C (104 F), Equivalent: ETS 300 019-1-4

- Wind-Driven Rain Test : ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

PBE-M5-400 Antenna Information

- Gain : 25 dBi

- Max. VSWR : 1.5:1

- Built-In Mechanical Downtilt : +20 to -10

Ubiquiti Powerbeam PBE-M5-400 - M5-25dbi

Rp 1.800.000
