BERSERTIFIKASI TKDN

*** BERGARANSI RESMI ICA SERVICE CENTRE ***

- PART & SERVICE : 1-TAHUN

- BATTERY : 3-BULAN

SPECIFICATION:

Inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.

Model : UPS CE600 D

Capacity : 600VA / 300W

AC Input Voltage : 140 – 300 V

AC Input Current : 1.6 A

AC Input Frequency : 50 ± 3 Hz

AC Input Protection : Fuse 3 A

DC Input Internal Battery : 1 x 12 V, 7.2 Ah

Inverter Output Waveform : SYNTHESIZED SINEWAVE

Inverter Output Voltage : 230 ± 10% V

Inverter Output Frequency : 50 ± 1 Hz

Inverter Output Efficiency : >80 %

Charger Type : CONSTANT VOLTAGE

Charger Voltage : 13.5 V

Charger Current : 1.5 A

Transfer Time : 4 ~ 8 ms

Back Up Time : 7 ~ 20 min

Indicator : LED & BUZZER

Operation Temperature : 0 – 40 °C

Dimension(DxWxH) : 298 x 101 x 142 mm

Weight Netto : 4.5 Kg

Weight Gross : 5 Kg

---------------------------------------------------

Model : UPS CE1200 D

Capacity : 1200 VA / 600 W

AC Input Voltage : 140 – 300 V

AC Input Current : 2.9 A

AC Input Frequency : 50 ± 3 Hz

AC Input Protection : Fuse 5 A

DC Input Internal Battery : 2 x 12 V, 7.2 Ah

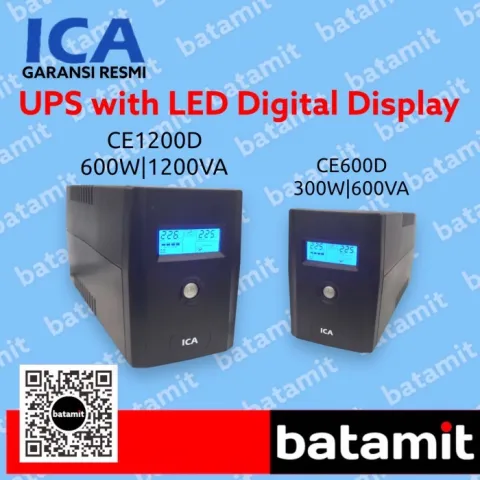

UPS ICA CE600D 600VA/300W | CE1200D 1200VA/600W LED Digital Display

UPS ICA CE600D 600VA/300W | CE1200D 1200VA/600W LED Digital Display

Rp 935.000

Rp 1.650.000
