Material: ABS Flame Retardant Material
Tensile Resistance: 6 KG

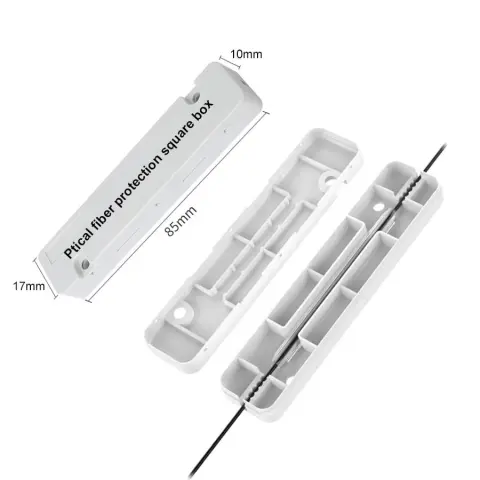

Dimensions: 85x18x11mm / 150*50*25mm

Product Description
This Fiber Optic Cable Square Protection Box is an Indoor Fiber Optic Cable Protection Box (also known as Heat Shrinkable Tube Box or FTTH Drop Splice Closure). It is a case to put in a butterfly cable with a thermal protection tube after hot melting, so that the splice spot can get a better protection. Relative to the cold welding, the hot one can improve the optical performance of connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product and lower maintenance costs.
This Fiber Drop Splice Closure is used in FTTH connection, we use this Fiber Drop Repair Splice Closure to make heat Shrinkable Splice with 2pcs Drop Cable (Or Drop Cable SC Connector Terminated one side). It's designed for either Flat Drop Cable or Round Drop Cable.

Features
Small size and good appearance
Smooth body and convenient installation
Mainly used as the protection between cables or pigtails
The reliable protection for splicing point avoids any breaking caused by external forces
Technical Data
Operation Environment
Temperature: -25'"~+65'"
Atmospheric Pressure: 70Kpa~106Kpa

Product Appearance
Without any defects that may affect the performance of the product, and the plastic shell injection smooth, no angle.
vibration: 10Hz, sinusoidal vibration;
Amplitude: 3 mm (6 mm, peak to trough);
Clamp Distance: 10 times diameter (minimum 250 mm); time: 2 hours
The residual fiber attenuation at 1550nm should be less than 0.03dB

Package Included:
1x Protection Box
