Detailed Specifications &
Technical Data
9105SL2P Coax – Series 59

RG59 Coaxial
20 AWG Solid Conductor
Cable Length 305 Meter
Impendance : 75 Ohm

Description:
Series 59, 20 AWG 0.81mm solid bare copper covered steel conductor, gas-injected foam polyethylene insulation, aluminum-PET
tape + aluminum braid shield (59% coverage), PVC jacket, with two power conductors.
PHYSICAL CHARACTERISTICS:
COAX CONDUCTOR:
Number of Coax 1
Total Number of Conductor 1
Series Type Series 59
AWG 20
Stranding Solid
Conductor Nominal Diameter 0.81 mm
Conductor Material BCCS - Bare Copper Covered Steel
INSULATION:
Insulation Material Gas-injected FPE - Foam Polyethylene
Insulation Nominal Diameter 3.66 mm
OUTER SHIELD:
Outer Shield Type Tape / Braid
Outer Shield Material:
Layer Number Type Material Nom. Coverage (%)
1 Tape Bonded Aluminum Foil – Polyester Tape 100
2 Braid AL – Aluminum 59

POWER CABLE:
Conductor stranded Construction 7/0.37 mm
Conductor Material Copper Clad Aluminum
Insulation Material Polyethylene
Insulation Color Red & Black

OVERALL OUTER JACKET:
Detailed Specifications &
Technical Data
9105SL2P Coax – Series 59

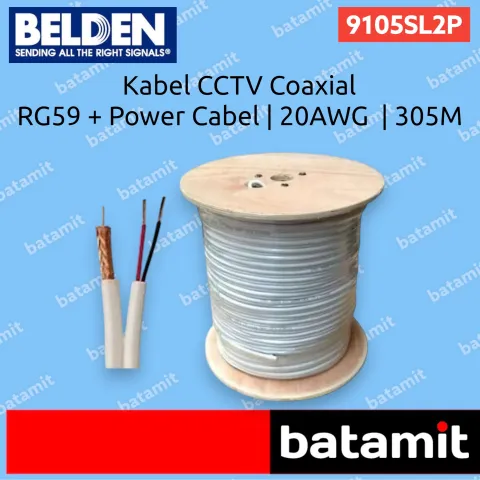

Kabel CCTV Belden RG59 - 9105SL2P - 20 AWG - Coaxial Cable + Power for CCTV

Kabel CCTV Belden RG59 - 9105SL2P - 20 AWG - Coaxial Cable + Power for CCTV

Rp 2.000.000
