Specifications

Model CS-H3c-R100-1K2WF

Camera

Image Sensor 1/2.7”Progressive Scan CMOS

Minimum Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

IR Night Vision Distance Up to 98 ft / 30 m

Shutter Speed Self-adaptive shutter

Lens 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)

Lens Mount M12

DNR 3D DNR

WDR Digital WDR

Day / Night Switch IR-Cut filter with auto-switching

Video & Audio

Max. Resolution 1080p, 1920 × 1080

Frame Rate Max: 30fps; Self-Adaptive during network transmission

Video Compression H.265 / H.264

Video Bit Rate Full HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate Self-Adaptive

Max. Bitrate 2 Mbps

Network

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20 MHz

Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

Wi-Fi Pairing AP Pairing

Protocol EZVIZ Cloud Proprietary Protocol

Interface Protocol EZVIZ Cloud Proprietary Protocol

Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

General

Dimensions 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)

Package Dimensions 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)

Weight Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz)

IP Grade IP67

Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)

Function

Detection AI-Powered Human Shape Detection, Motion Detection

Customized Alert Area Supports

Integration Works with Alexa, Google Assistant, IFTTT

General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage

Local Storage Supports microSD card (Up to 512 GB)

Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)

Power

Power Supply DC 12V / 1A

Power Consumption Max. 6W

In the box

In the box - H3c Camera

- Drill Template

- Screw Kit

- Waterproof Kit

- Power Adapter

- Regulatory Information

- Quick Start Guide

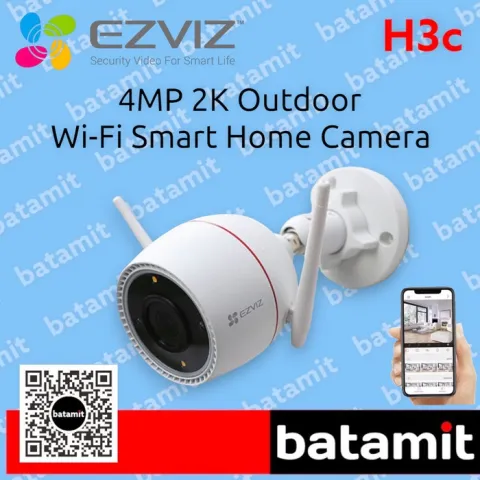

EZVIZ H3c 4MP 2K+ Color Night Vision Outdoor Wi-Fi Smart Camera CCTV

EZVIZ H3c 4MP 2K+ Color Night Vision Outdoor Wi-Fi Smart Camera CCTV

Rp 729.000
