70mai Dashcam UP02 Hardwire Kit for Parking Monitor M300 A400 A500s A800s Lite2 Dash cam pro lite

Interface : Usb2.0

Voltage : 24V

Product name : 70mai Hardware Kit

Product name 1 : 70mai Cable

Feature : For 24H Parking Monitoring

Function : For 70mai A800 4K Dash Cam

Function 1 : For 70mai Pro

Function 2 : For 70mai Lite 24H Parking Monitoring

Function 3 : For 70mai Wide Cam

Cable Length : About 3M

Low voltage protection for small cars : 11.4V

Low voltage protection for big cars : 22.8V

Output voltage : 5V

Input voltage : DC 12-30V

Working temperature : -20℃~70℃

Storage temperature : -30℃~85℃

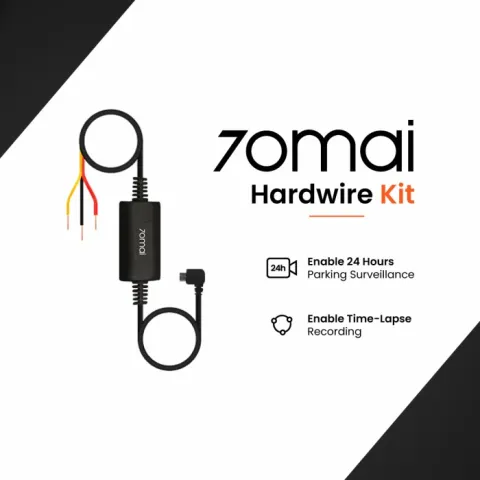

70mai Hardware kit Cable for 24H Parking Monitior in Car

Please connect each sub-line of the parking monitoring line to the fuse box in the following:

1. The power cord (red) is connected to a normal fuse with an input voltage of 12V-30V and an output current of 2.4A in the fuse box;

2. The ACC signal wire (yellow) is connected to the ACC power fuse in the fuse box;

3. The ground wire (black) is connected to the negative pole of the fuse box or the grounding position

Melayani pemasangan Dashcam 70mai, dengan biaya tambahan.

70mai Dash Cam HardWire Kit untuk Parking Monitor

Rp 300.000
