X9 and RG206S RC radio and receiver parameters

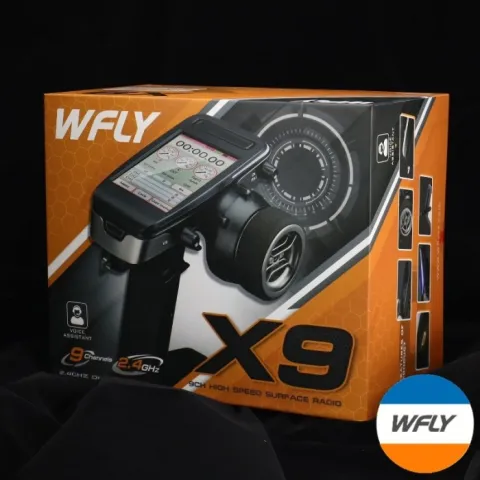

Item Name:X9 Transmitter with RG206S Receiver

Transmitter parameters

Radio parameters:

Model Type: X9

Channel: 9 channels

Working voltage: 3.5V~6.0V（1S lipo battery/4×AA dry battery ）

Working current: 260~400mA

Frequency Hopping:FHSS

Modulation:LORA

Application: RC cars, boats, tanks, robot,etc.

Resolution: 4096

Frequency band: 2.4GHz (two-way)

Transmission power:≤100mw

Range:＞600m(ideal round)

Temperature:-10℃—+60℃

Simulator interface:3.5mm（PPM）

Storage: 40 models memory

Program mix:5 models

Voice broadcast:Support

Charging :Support 1S lipo battery(Type C)

Language: English

Upgrade: USB online upgrade

Servo:Support 180/270°

Display: 3.5” 480*320 capacitive touch screen

Dimension:185x147x110mm

Weight:318g

Receiver parameters

Model name:RG206S

Channel:6 channels(PWM)

Working current: 95mA

Frequency band: 2.4GHz(two way transmission)

Working voltage: 3.5V~9.0V

Modulation:LORA

GPS:Support speed detection

Application: RC cars, boats, tanks, robot,etc.

Resolution: Full channel 4096

Temperature:-10℃—+60℃

External voltage detection:DC 1~36V

Servo:Support 180/270°

W.BUS:support S.BUS

Upgrade: USB online upgrade

Dimension:33.5x22.0x12.5mm

Weight:7.6g

Package Included:

1 x X9 Transmitter

1 x RG206S Receiver

1 x Battery Tray

1 x Manual

1 x Foam Case

1x Package Case
