Features:

-14 Pole 12 Slot Hi-torque rotor design, stable output power .

-Fits all 1/10th brushless crawler cars, multi-mounting system

for M3 screws.

-CNC Machined 6061 T6 aluminum front and rear cover

-High purity copper windings maximizes efficiency

-High toughness stainless steel shaft, high precision and high

quality bearing make the motor super durable.

-Removable/Replaceable rotor design, Convenient for

cleaning and maintenance, Effectively extend the service life

of the motor and improve work efficiency.

Specifications:

C3532 Crawler brushless motor

1470KV:

Max voltage: 14V(2-4S Lipo)

Max current: 38A

KV: 1470KV

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 35mm

Motor length: 32mm

Power: 380W

G.W(g): 140g

1850KV:

Max voltage: 14V(2-4S Lipo)

Max current: 45A

KV: 1850KV

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 35mm

Motor length: 32mm

Power: 450W

G.W(g): 140g

2050KV:

Max voltage: 14V(2-4S Lipo)

Max current: 52A

KV: 2050KV

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 35mm

Motor length: 32mm

Power: 530W

G.W(g): 140g

Specifications:

C3542 Crawler brushless motor

1470KV:

Max voltage: 14V(2-4S Lipo)

Max current: 80A

KV: 1400KV

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 35mm

Motor length: 42mm

Power: 1100W

G.W(g): 178g

1850KV:

Max voltage: 14V(2-4S Lipo)

Max current: 91A

KV: 1850KV

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 35mm

Motor length: 42mm

Power: 1350W

G.W(g): 178g

2250KV:

Max voltage: 14V(2-4S Lipo)

Max current: 105A

KV: 2250KV

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 35mm

Motor length: 42mm

Power: 1560W

G.W(g): 178g

Package included:

1 x Outrunner Brushless Motor

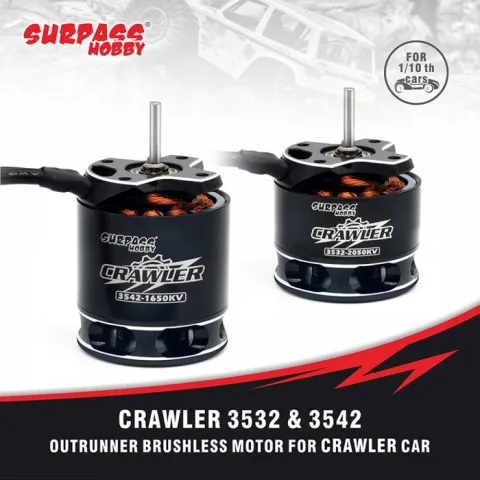

Surpass Hobby 3532 3542 Crawler Outrunner Brushless Motor 1/10 SCX10

Surpass Hobby 3532 3542 Crawler Outrunner Brushless Motor 1/10 SCX10
