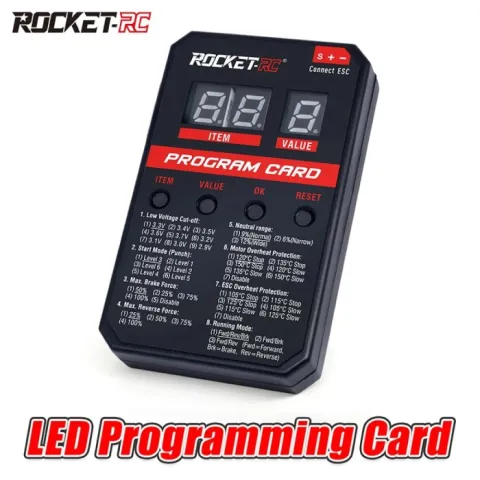

Supersonic LED Program Card For 45A/60A/80A/120A/150A ESC Brushless Electronic Speed Controller For RC Car

Features:

1. Suit for Supersonic 45/60/80/120A ESC.

2.This Programing Card is easy to use.

3.It can program brake force, reverse force, low voltage protection, start mode and neutral range.

Description:

Simple operation, suitable for a variety of esc, is a good choice for RC fans.

Specifications:

Brand name:SURPASSHOBBY

Use: Vehicles & Remote Control Toys

For Vehicle Type: Cars

Remote Control Peripherals/Devices: LED Program Card

Only Apply to: Supersonic Rocket V2 Motor

Material: plastic

1:Low Voltage Cut-Off: The function is mainly to prevent the lithium

battery pack from over discharging. When using lithium battery pack,

please set the suitable value for low-voltage protection as your like.

WARNING: Never use the default value “Non-protection” for lithium

battery! 3.1V Slow、2.9V Slow、2.7V Slow、Disable、3.4V Slow、3.1V

Stop、2.9V Stop、2.7V Stop、3.4V Stop(default value 3.1V Slow).

2:3 start modes (Also called “Punch”) Level3、Level1、Level6、Level2、 Level4、Level5、(default value Level3)

3：Maximum brake force: 50%、25%、75%、100%、Disable(default

value 50%)

4:Maximum reverse force: 25%、50%、75%、100%(default value 25%)

5:Neutral range: 9%(narrow),6%(Normal),12%(Wide) (default value 9%)

6:Motor Overheat Protection：120℃Stop 、135℃ Stop、150℃

Stop、120℃ Slow、135℃ Slow、150℃ Slow、Disable(default value

120℃ Stop)

7:ESC Overheat Protection：105℃ Stop、95℃ Stop、105℃ Stop、 95℃ Stop、Disable(default 105℃ Stop)

8:Running Mode：Fwd/Rev/Br、Fwd /Br、Fwd/Rev(default value

Fwd/Rev/Br)(Fwd=Forward、Brk=Brake、Rev=Reverse)

9:Drag Brake Force：0%、5%、10%、20%、30%(default value 0%).

Size:70*43*13mm

Weight:24g

Rocket Supersonic LED Program Card 45A/60A/80A/120A/150A ESC Brushless

Rp 184.000
