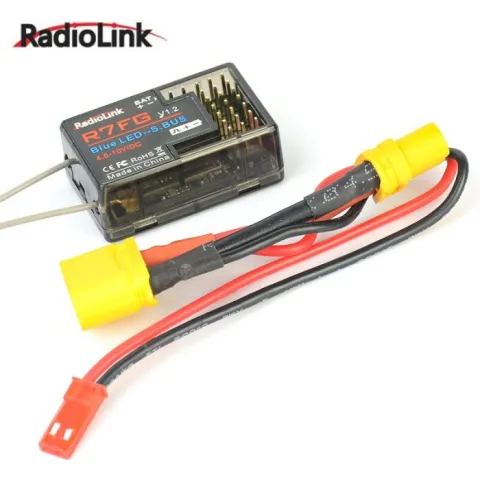

R7FG 7CH V1.4

7 Channels: 2.4Ghz dual antennas with stronger signal, 1-6 channel output PWM signal, the 7th channel outputs SBUS/PPM signal.

Real-time Telemetry: R7FG built-in telemetry feature, can give you important information like vehicle's battery voltage, RSSI signal quality and more, avoiding the battery over-discharge and damage.

Integrated Gyro: timely and precisely corrects the sensitivity and improve the stability. Its good flexibility to nearly all of types rc models, like drifting on-road rc car.

Excellent Anti-interference: FHSS algorithm reduce overall signal interference. Outstanding range over 1968 feet (600 meters) on the ground, good choice for FPV RC car.

Superb Fast Response: High resolution ratio of 4096, the stability of 0.5us, only 12ms frame rate, to provide a quicker, low-latency connection for the driver.

Small Size with Compact Case: Only 30*18.5*11.5mm small size and 6 gram lightweight.

How to bind with transmitter:

1. Put the transmitter and the receiver close to each other within 50 cm.

2. Turn on the transmitter, then power on the R7FG.

3. There is a black button on the R7FG, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

Attention: R7FG default have not turn on the gyro function. Make sure the R7FG keep motionless when power on it, because the R7FG will do the self-test. R7FG with two indicate LED, green LED on indicate normal working mode while both green and red LED on indicate gyro function working mode.

R7FG Receiver Specifications:

Channel: 7

Model: Cars/boats

Control Distance: 600 meters

Spread Spectrum: FHSS

Antenna Length: 200mm

Work Current: 30mA

Power Supply: 4~10.0V DC

RF Power: <10dbm

Channel Resolution: 4096

Size: 30*18.5*11.5mm

Weight: 6g

Model Application: Car/boat

Compatible transmitter: RC6GS/RC4GS/8FB/T8S

Package Included:

R7FG Receiver x 1

Voltage telemetry
