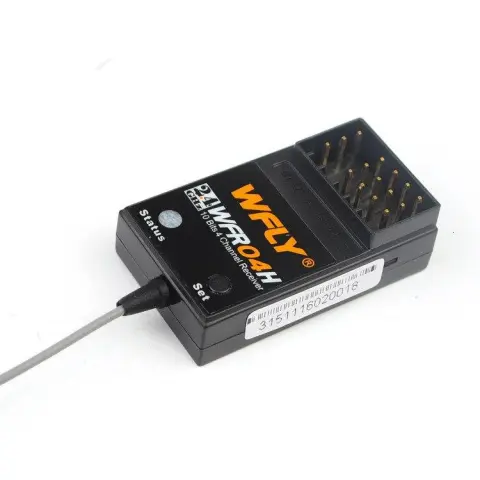

WFR04H 4ch receiver is a high speed receiver especially designed for WFX4.
Though it’s specialized for WFX4,it’s still compatible with other series of WFLY products.
WFR04H also has Fail-safe function to protect your models!

Package contains:

WFLY X4 WFR04H Receiver*1

Specification
Receiver Model: WFR04H

Use in： car, boat

Band： 2.400GHz-2.483GHz ( varies with different country and region)

Fail safe , quick recover signal

Modulation： PPM/PCMS 1024

Power： 3.7-8.5V

Dimension： 34.8×21×11.3mm

Weight： 6g

Range test in ground: more than 100M

WFLY 2.4Ghz System
1. WFLY 2.4GHz system uses the DSSS frequency-hopping technology . DSSS is direct sequence spread spectrum which is one of the most strongest anti-interference ability in the modern digital communications.

2. The DSSS application in the WFLY 2.4GHz systems is also designed the hopping function .The current system is can hopping in three channels , the width of each channel is 1Mhz. Once a channel is interference, will communicate in another channel. Improve the Interference and the reliability .

3. Each device has a separate identification code, will improved the anti-interference when more than one device work together.

4. Automatic channel scan. Each WFLY 2.4GHz transmission equipment automatically scan the available channels, to ensure the equipment can more reliable work.

5. Communications data cheakout are according to the identification code for CRC to ensure that a large number of 2.4GHz devices will not interfere with each other while working to enhance immunity and reliability.

6. Selected high-tech electronics optimized design are provided a powerful guarantee to the reliability and robustness of the equipment .

7. WFLY uphold the traditional software development with high reliability to ensure that each WFLY 2.4GHz equipment is reliable and stronger anti-interference ability.

Original WFLY X4 2.4G Receiver WFR04H 4ch receiver high speed receiver

Original WFLY X4 2.4G Receiver WFR04H 4ch receiver high speed receiver

Rp 298.000
