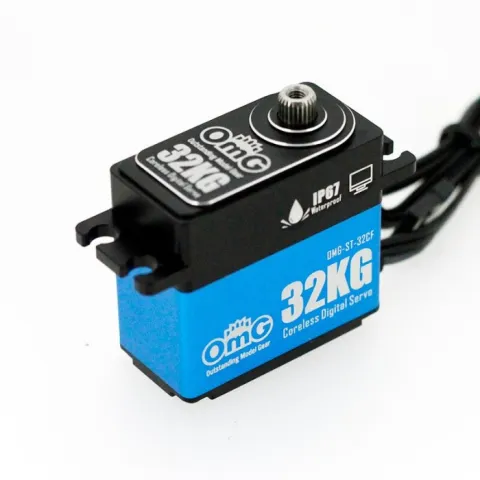

OmG ST-32CF 32kg All-Metal Coreless Motor High-Voltage Digital Standard Servo For Turbojet/Balsa Aircraft/Rc Boat/Rc Car Parts

Product description:

Standard size full metal coreless high voltage digital servo, full case in CNC precise engraving, matte cover. Fit for 1:10/1:8 crawler, 1:10 RC vehicle and plane above 60CC, waterproof IP67, programmable.

Basic parameters:

Model: OMG-ST-32CF

Appearance: all metal CNC finishing

Gear: stainless steel gear

Motor: Brushless motor

Circuit board: brushless digital

Waterproof: IP67 anti-foaming water

Programming: computer tuning via USB

Working voltage: 4.8-8.4V

The fastest speed: 7.4V-0.098sec/60° 8.4V-0.083sec/60°

Locked-rotor torque: 7.4V-29kgf.cm 8.4V-32kgf.cm

Output gear: 25T

Product size: 40x20x38mm

Product weight: 73g

Operating stroke: 180±10°(500-2500μsec)

Rotation direction: 180°(1000-2000μsec)

Angle limit: 220

Neutral point: 1520μsec

Maximum stroke: ≈180°(500-2500μsec)

Pulse width range: 500-2500μsec

Death drive pulse width: 2μsec

Wire length: JR350 mm

Wire model: #22PVC

OMG ST-32CF Digital Servo 32kg All-Metal Coreless HV Waterproof RC

OMG ST-32CF Digital Servo 32kg All-Metal Coreless HV Waterproof RC

Rp 930.000
