ntegrated CNC Aluminum Front Rear Axle with Optional Bevel Gear SOA Mount for 1/10 RC Crawler Rig SCX10 II Element Enduro CC01

• 6061 Aluminum Housing

• CNC Machined

• Black/Clear/Gray Anodized

• Housing Solid Reinforcement Design, Scale Appearance

• Integrated C-Hub Design

• Integrated Panhard Mount

• Upper Link Mounts Built into Differential Cover

• Increased Upper Link Clearance for More Suspension Up Travel Ability

• Compatible with Factory Axial SCX10 II Links

• Heavy Duty Hardened Steel Bevel Gear Set(30/8T)

• Hardened Steel Universal Axle and Straight Axle

• Up to 46 Degrees of Steering

• Smooth Action for an Efficient Drivetrain

• Stainless Steel Steering/Servo Link

• Quality CNC Aluminum Rod Ends

Specifications:

Material: 6061 Aluminum

Color: Black/Clear/Gray

Total Length: 215mm

Pin to Pin: 180mm

Pumpkin Height: 36mm

Input Pinion Shaft: 5mm

Gear Ratio: 3.75 : 1

Kingpin Inclination: 8 Degrees

Kingpin Caster: 12 Degrees

Weight (Front Axle): 230g

Weight (Rear Axle): 150g

Optional Parts:

• Overdrive Gear Set 24T/8T

• Overdrive Gear Set 27T/8T

• Underdrive Gear Set 33/8T

• SOA (Servo on Axle) Mount (Coming Soon)

Important Notes:

1. Before you run the axles, make sure there is plenty of grease in the diff (enough to cover the gears)

2. Fasten all screws securely

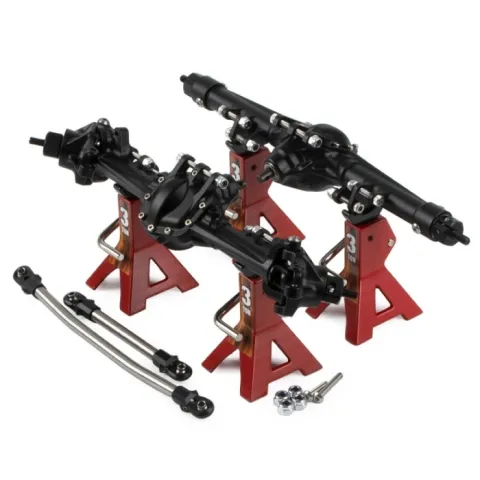

3. The jack in the photo is for showing the axle only (Not Included)

4. This axle is not compatible with reverse bevel gears

Integrated CNC Aluminum Front Rear Axle w/Optional BevelGear SOA Mount

Rp 2.347.000
