SUDAH TERMASUK BAN VELG SET

TIDAK TERMASUK BUMPER DEPAN & MAGNET BODY POST

Single-Speed or 2-Speed Transmission of Chassis are optional. Please confirm whick kit you want before place a order.

Use method of 2-Speed Transmission:

Using a 3-channel transmitter and a micro servo, you have control on demand. Shiftable transmission can be configured in one of two ways. Set it up for 2-speed using the high and low gears.

The rudder amount of the micro-servo should be adjusted to the minimum at the first use, and then adjusted to the appropriate vaule. Please shift transmission at low speed to prevent damage.

Features:

A good choice to DIY and upgrade

Equipped with a micro servo for the 2-speed transmission chassis

Smooth transmission system, 313mm wheelbase chassis for 1/10 RC Crawler

Prefixal transmission gearbox design, is convenient to mount Jeep Wrangler body shell

Specifications:

Material: Metal and Plastic

Quantity: 1pcs

Weight: 1245g (Single-Speed) 1300g (2-Speed)

Length: 435mm / 17.13in

Frame Width: 76mm / 2.99in

Axle Width: 215mm / 8.46in

Wheelbase: 313mm / 12.3in

Motor Gear: 0.7M 15T

Gear Ratio of Transfer Case: 1:1.2 (Singe-Speed) 1:1 (2-Speed)

Gear Ratio of Single Speed Transmission: 1:8

Gear Ratio of 2-Speed Transmission: 1:8 (low gears) 1:4.8 (high gears)

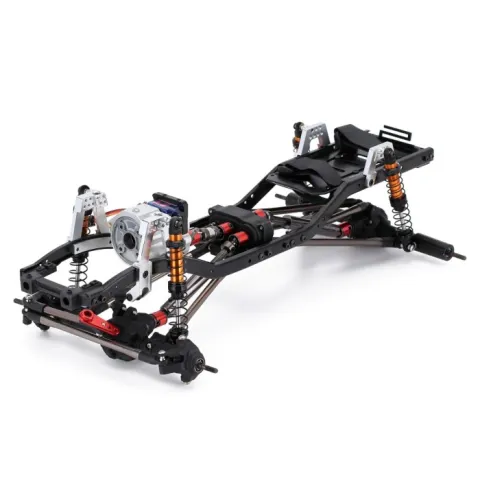

INJORA 313mm Wheelbase Metal Chassis Frame kit axial SCX10

INJORA 313mm Wheelbase Metal Chassis Frame kit axial SCX10

Rp 2.878.000

Rp 3.525.000
