The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Features

Water-proof and dust-proof for all-weather races.

(Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

External programming port, easy to connect to the Program Card when setting the ESC.

Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.

9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.

Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.

One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.

Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Specifications

Cont./Peak Current: 150A/950A

Resistance: 0.000,5 Ohm

Motor Type Supported: Sensorless Brushless Motor

Car Applicable: 1/8 Off-road Buggy/Monster/Truggy

Motor Limit

For 4S Lipo or 12 cells NiMH:

4274-size or smaller motor with the KV<3000

For 6S Lipo or 18 cells NiMH:

4274-size or smaller motor with the KV<2400

Battery

9-18 Cells NiMH

3-6S Lipo

BEC Output: 6V/3A (Switch Mode)

Size: 59,5(L)*48(W)*42(H)

Weight / 178g

External Program Port: Available

Working voltage of Fan: From BEC (6V

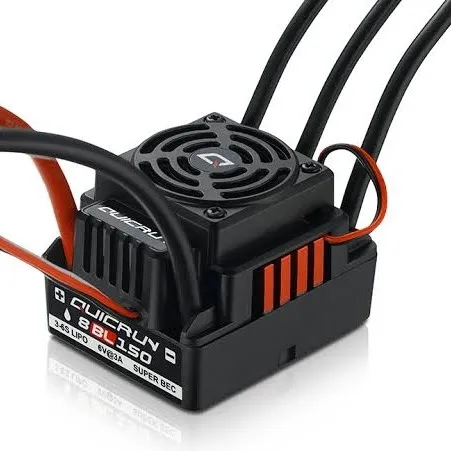

Hobbywing QuicRun Brushless ESC WP-8BL150 150A BEC 3A 3-6s 1/8

Hobbywing QuicRun Brushless ESC WP-8BL150 150A BEC 3A 3-6s 1/8

Rp 1.540.000
