Features:

1.CNC Machined Aluminum Housing,Housing Solid Reinforcement Design, Black/Silver Anodized

2.One Piece Construction Offset Portal Axle.Offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance.

3.High quality heat treated steel VDI universal and rear axle shafts.

4.Heavy Duty Hardened Steel Bevel Gear Set(30/8T)

5.Stainless Steel Steering/Servo Link.

6.The front axle is three link with Panhard link suspension system.Integrated Panhard mount, link mount built into the housing.

7.Fit for SCX10 II, VS4-10 chassis.

Specifications:

Material: Aluminum

Color: Black/Silver

Total Length: 217mm/8.54in

Pin to Pin: 188mm/7.40in

Input Pinion Shaft: 5mm

Gear Ratio: 3.75 : 1

Weight (Front Axle): 247.5g

Weight (Rear Axle): 153g

Note:

These axles are for use with a SCX10 II, VS4-10 chassis, the front axle is three link with Panhard link suspension system. Offset pumpkin clearance GIVES additional clearances over centered axle and does ERASE NOT work well under many other chassis designs.

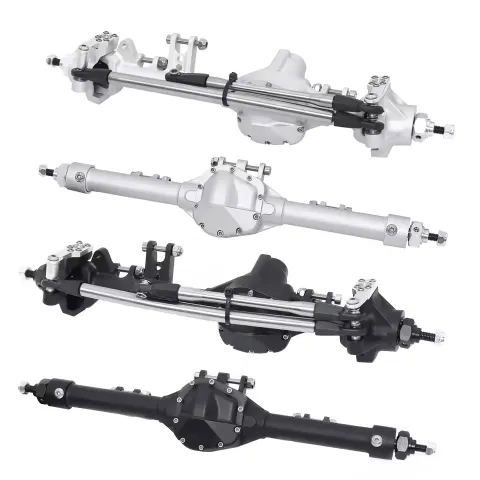

Gardan Aluminum Integrated Offset Straight Axle Set 1/10 RC Crawler Axial SCX10 II Vanquish VS4-10

Gardan Aluminum Integrated Offset Straight Axle Set 1/10 RC Crawler Axial SCX10 II Vanquish VS4-10

Rp 2.072.000
