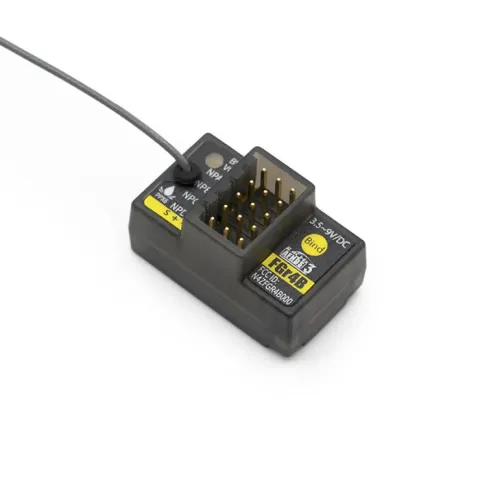

FlySky FGr4B 2.4G 4CH 3 Micro Mini Receiver PWM/PPM/i-bus/S.BUS/i-bus2 Output for PL18 NB4 NB4 Lite AFHDS 3 Transmitter for RC Car Boat

Features:

The FGr4B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3).

It uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/PPM/i-bus/S.BUS/i-bus2 in signals.

It supports all AFHDS3 transmitter.including FlySky PL18,NB4, NB4 Lite Transmitter.

Compact size and light-weight design,easy installation.

Specifications: User Manual

Brand Name: FlySky

Item Name: FGr4B Receiver

Model: FGr4B

PWM Channels: 4

RF: 2.4GHz ISM

2.4G Protocol: AFHDS 3

Antenna: Single Antenna

Input Power: 3.5~9V

Data Output: PWM/PPM/i-bus/S.BUS/i-bus2

Temperature Range: -10℃—+60℃

Humidity Limit: 20%~95%

Online Update: Yes

Dimensions: 17*29*16.6mm

Weight: 6.4g

Model Type: Car/Boat ect

Certification: CE，FCC ID: N4ZFGR4B000

Adaptive transmitter: all transmitter supporting AFHDS3 (PL18,

NB4,NB4 Lite etc.)

Binding:

- Press and hold the receiver BIND button [5] while powering on the receiver ,release the BIND button after receiver is powered on or powering on the receiver first, press and hold the BIND button 3 seconds , the LED [7] on the receiver will flash rapidly;

- Put the transmitter into bind mode;

- The binding process is complete when the LED on the receiver stops flashing and is on continuously.

If a transmitter that has had its radio frequency (RF Standard) set to “AFHDS3 1 way” (please refer to your transmitter user manual) enters bind mode, the receiver LED will instead flash slowly. Exit bind mode on the transmitter and if the receiver LED stops flashing and is on continuously, the binding process is complete.

- Check to make sure the transmitter and receiver functions are working correctly, repeat steps 1 to 3 (binding process) if any problems arise.

Compatibility:

The FGr4B receiver is compatible with all AFHDS 3 transmitters (Note: It is currently applicable to PL18 1.0.55, NB4 2.0.93 and NB4 lite 1.0.10 and later versions. The high-frequency library used by the firmware is version 3.0.)

Package Included:

1 x FGr4B Receiver
