Features:

2.4GHz 4 channel receiver is compatible with All Transmitters with AFHDS3 Protocol, good for remote control Car and remote control Boat.

The FGr4D is a 4-channel two-way receiver based on AFHDS3(Third GenerationAutomatic FrequencyHoppingDigitalSystem) protocol.

This receiver features dual antennas, PPX6nanowaterproof.

It supports 4 New port function interfaces(Newport canbe customizedwithinputoroutput signaltypes: i-BUS2/S.BUS/i-BUS/PPM).

Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing.

Specification:

Product Model: FGr4D

Adaptive Transmitter: All Transmitters with AFHDS3 Protocol

Model Type: Carsor Boats, ect.

PWM Channels: 4

RF: 2.4GHz ISM

2.4G Protocol: AFHDS3

Maximum Power: < 20dBm (e.i.r.p.) （EU）

Antenna: Bulit-in Dual Antennas

Input Power: 3.5~9V/DC

Working Current: ≤ 50mA/5V

Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS

Temperature Range:-10℃ ~ +60℃

Humidity Range: 20%~ 95%

Water Proof: PPX6

Online Update: Yes

Size: 30.3*25.8*20mm

Weight: 7.2g

Package information:

Package size: 8 * 5 * 3cm

Package Weight: 13g

Package List:

1 * FGr4D receiver

1* Cable

1* User Manual

1* Stickers

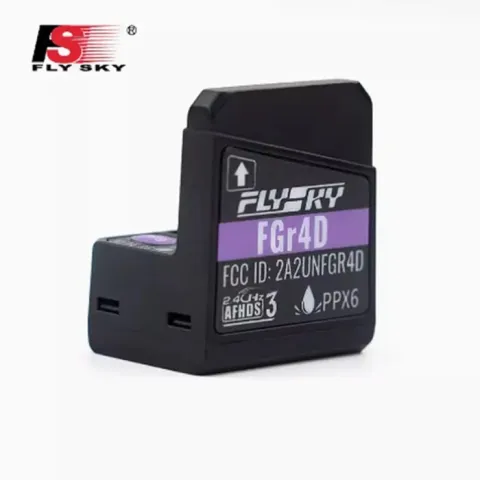

FlySky 4-channel Bidirectional Receiver FGR4D

Rp 704.000
