Specification

Product Description

Type:

Scale:1/8th & 1/10th

Brushed/Brushless：Brushed

Waterproof: Waterproof

Product Number :30112750

Specifications:

Cont./Peak Current:80A/400A

Input:2-3S Lipo/5-9 Cell NiMH

BEC Output:Swich Mode:6V/7.4V 3A

Wires & Connectors:

Input Wires:Red-14AWG-200mm*1 / Black-14AWG-200mm*1

Output Wires:Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

Input Connectors:XT60 Connectorss

Output Connecotors:No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via:

SET Button on ESC”Supported

LED Program Box“Supported

LCD Program Box：Not Supported

WiFi Module：Not Supported

Program Port：Separate Program Port

Firmware:

Firmware Upgrade:Not Supported

Size & Weight:

Size：36.2x31.6x17.0mm

Weight：58.5g(w/Wires)

Applications:

Motors：Brushed Motor(540/550/775 size motors)

Vehicles：1/8th,1/10th Rock Crawler

KV Rating/T Count：

Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPMBrushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM

Package Included:

1 * 80A 1080 ESC（XT60 plug Or T plug as u choose）

1 * English Manual

1* Set Card

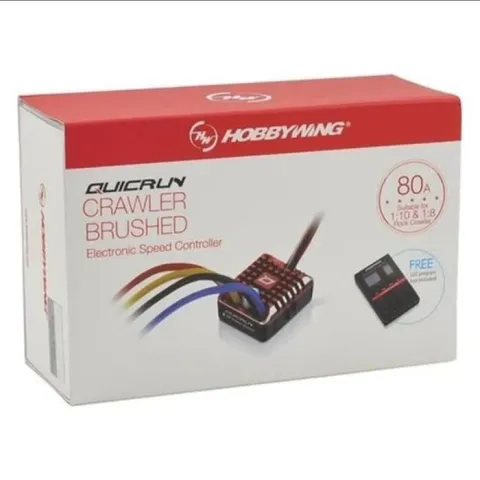

ESC Hobbywing Quicrun 1080 80A waterproof

Rp 874.000
