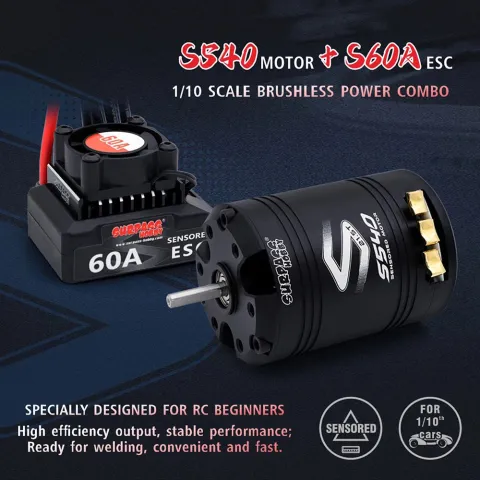

SURPASSHOBBY Brushless Motor ESC Combo S540 Brushless Sensored Motor 60A Sensored ESC 32-bit 6V/3A BEC For 1/10 RC Cars

ESC Features:

1. 32-bit processor, data processing capabilities strong.

2. Supports two programmable parameter adjustment methods.

3. Built-in 3A/6V BEC.

4. Adjustable throttle and brake PWM frequency.

5.With High-performing Removable cooling fan(23000rpm/7.2V).

6. Suitable for 1/10",1/12 RC car.

Motor Features:

1. All machined aluminum alloy shell.

2. High temperature resistant copper wire, stable performance.

3. High-precision bearing, smooth and wear-resistant.

4. 0.35mm silicon steel sheet high grade, low heatgeneration and high efficiency.

5. Suitable for 1/10" RC Car.

Description:

SURPASSHOBBY Brushless Motor ESC Combo High efficiency output, stable performance;Ready for welding, convenient and fast,Suitable For 1/10 RC Cars

S60A ESC Specifications:

Model: S60A

Voltage input: 2-3S

Continuous current: 60A

Peak Current: 360A

B.E.C: 6V/3A

Switch Function: Switch+Throttle Range Setting+Programming

Fan: 25mm

Capacitor: 470μFx1

Cable: 16AWGx150mmT-Plug

Motor: Sensored Brushless 380,390,540>17.5T

Dimension: 43.7x38.8x30.2mm(including fan)

S540-2400KV Motor Specifications:

KV(RPM/Volt): 2400KV

MAX Watts: 100W

lipo (S): 1-3S

Max Amps: 34A

Rotor Poles: 2

Resistance: 40.3

TurnS: 17.5

Shaft(mm): 3.175MM

Combo SURPASSHOBBY Brushless Motor ESC Sensored S540 17.5T 60A ESC 32-bit 6V/3A BEC 1/10 RC Cars

Rp 915.000
