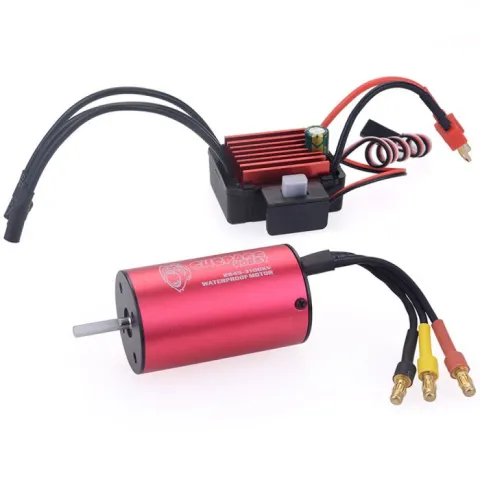

SURPASSHOBBY 2845 4400KV Waterproof Brushless Motor 35A ESC T Deans for Traxxas Trx4 HSP Monster Buggy Off-Road 1/12 RC Car

Characteristics:

4-pole 12-slot high torque motor.

HIGH QUALITY: CNC machined 6061 T6 billet aluminum heatsink can, high purity copper windings maximize efficiency, ABEC5 oversized high speed bearings.

Universal fit for all 1/12 2S RC cars and 3S racing cars.

Precisely balanced rotor, smooth running for best reliability and maximum speed.

Stator - Super thin (0.35mm) laminations.

Removable/replaceable rotor

Precision engineered for maximum energy conversion

ESC functions:

1. Waterproof and dustproof for all-weather racing; (Note: Please uninstall the fan before using this controller in water. Clean and dry it soon after use to avoid the connectors from rusting.)

2. Specially designed for RC cars with excellent starting, acceleration and linearity functions.

3. Compatible with sensorless brushless motor.

4. The strong resistant current ability, excellent heat dissipation.

5. Multiple protection functions: Low voltage shutdown protection for lithium or nickel batteries / Overheat protection / Throttle signal loss protection / Motor stall protection /

6. Easily programmed and compatible with pocket-sized program card.

Description:

This is an electronic speed controller (ESC) for the car. The high power system for RC models is very dangerous, so please read this manual carefully.

Because we have no control over the proper use, installation, application or maintenance of our products, we assume no responsibility or liability for any damages,

Losses or costs arising from the use of the product. Any claims arising from operation, failure of malfunctions, etc. will be rejected.

We accept no liability for any personal injury or consequential damage resulting from our product or workmanship.

Specifications:

Brand: SURPASSHOBBY

Series: KK

Name: 2845 RC Motor

Red color

KV (RPM/Volt): 4400KV

Watts: 800

Max. rpm: 50000

Rotor poles: 4

Diameter: 28mm

Length: 46.5mm

Shaft: 3.175mm

Shaft length: 15mm

Connector: 3.5mm gold

Weight: 118g

35A ESC

Specification:

Brand: SURPASSHOBBY

Name: KK 35A ESC

Continuous current/burst current: 35A/120A

Motor Type: Sensorless Brushless Motor

For 2S Lipo or 6 cells NiMH:

1. Onroad: 28XX-Size or smaller motor with KV<6000KV

2. Off-road/Buggy/Monster: 28XX size or smaller motor with KV <4000KV

For 3S Lipo or 9 cell NiMH:

1. Onroad: 28XX-Size or smaller motor with KV<4000KV

2. Off-road/Buggy/Monster: 28XX size or smaller motor with KV <3000KV

Suitable car: 1/16 1/14 car

Resistance: 0.0004 ohms

Battery: 2-3S Lipo/4-9 cells NiMH

BEC output: 5.0V/2A (analog mode)

Dimensions/Weight: 40x32x20mm/37g

Delivery content:

1 x SURPASSHOBBY KK 2845 brushless motor

1 x KK Series 35A Brushless Controller

1 x English Manual
